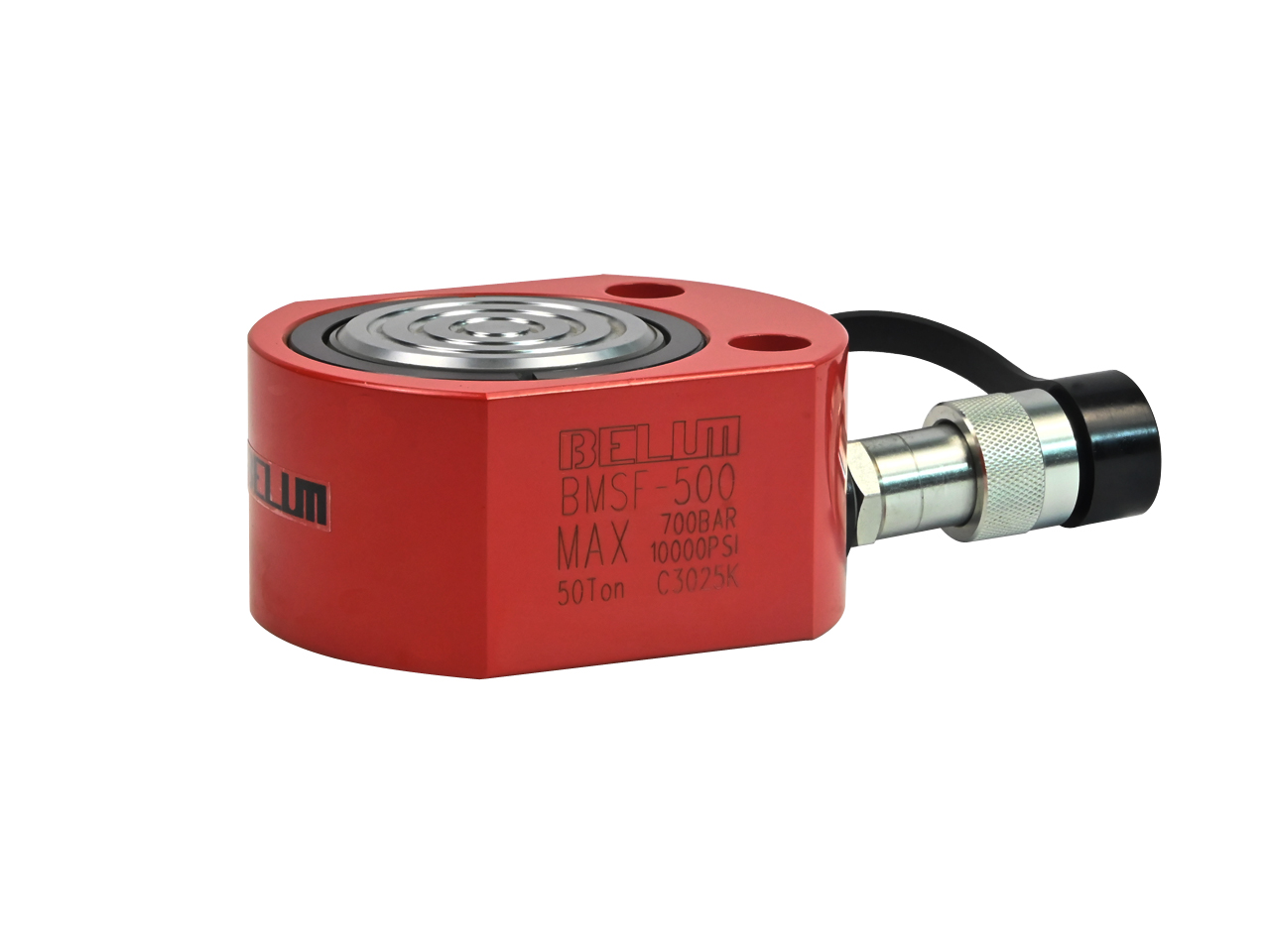

Flat Jack Cylinders
They can be used in maintenance, machinery leveling, and construction and mining applications. All BMSL-Series cylinders feature a hard chrome cylinder bore and piston rod for maximum corrosion resistance and bronze overlay piston bearing area to resist side load included damage. Mounting holes are standard on all models and a grooved piston rod end improves load grip.
Request a free consultation
- Product Models
- Series Comparison
- Downloads
- Videos
Product Models
BMSF-50
BMSF-100
BMSF-200
BMSF-300
BMSF-500
BMSF-750
BMSF-1000
BMSF-1500
Series Comparison
| MODEL | CYLINDER CAPACITY @ 10,000 PSI |
STROKE | CYLINDER EFFECTIVE AREA | OIL CAPACITY | COLLAPSED HEIGHT | EXTENDED HEIGHT | OUTSIDE DIAMETER | PISTON DIAMETER | WEIGHT |
| A | B | D | F | ||||||
| METRIC TON (US TON) | MM | CM2 | CM3 | MM | MM | MM | MM | KG | |
| BMSF-50 | 5 (5.5) | 6 | 7.1 | 4.3 | 33 | 39 | 59×42 | 25 | 1 |
| BMSF-100 | 10 (11) | 10 | 14.5 | 16 | 42 | 55 | 83×56 | 38 | 1.4 |
| BMSF-200 | 20 (22) | 11 | 28.6 | 31 | 51 | 63 | 101×76 | 51 | 3.1 |
| BMSF-300 | 30 (33) | 13 | 42 | 55 | 58.5 | 71 | 117×95 | 66 | 4.5 |
| BMSF-500 | 50 (55) | 16 | 62.1 | 99 | 67 | 83 | 140×114 | 70 | 6.8 |
| BMSF-750 | 75 (82.5) | 16 | 102.7 | 164 | 79 | 95 | 165×139 | 83 | 11.4 |
| BMSF-1000 | 100 (102.2) | 16 | 126.8 | 203 | 86 | 102 | 178×153 | 92 | 14.5 |
| BMSF-1500 | 150 (154.8) | 16 | 198.1 | 317 | 100 | 116 | 215×190 | 115 | 26.3 |
